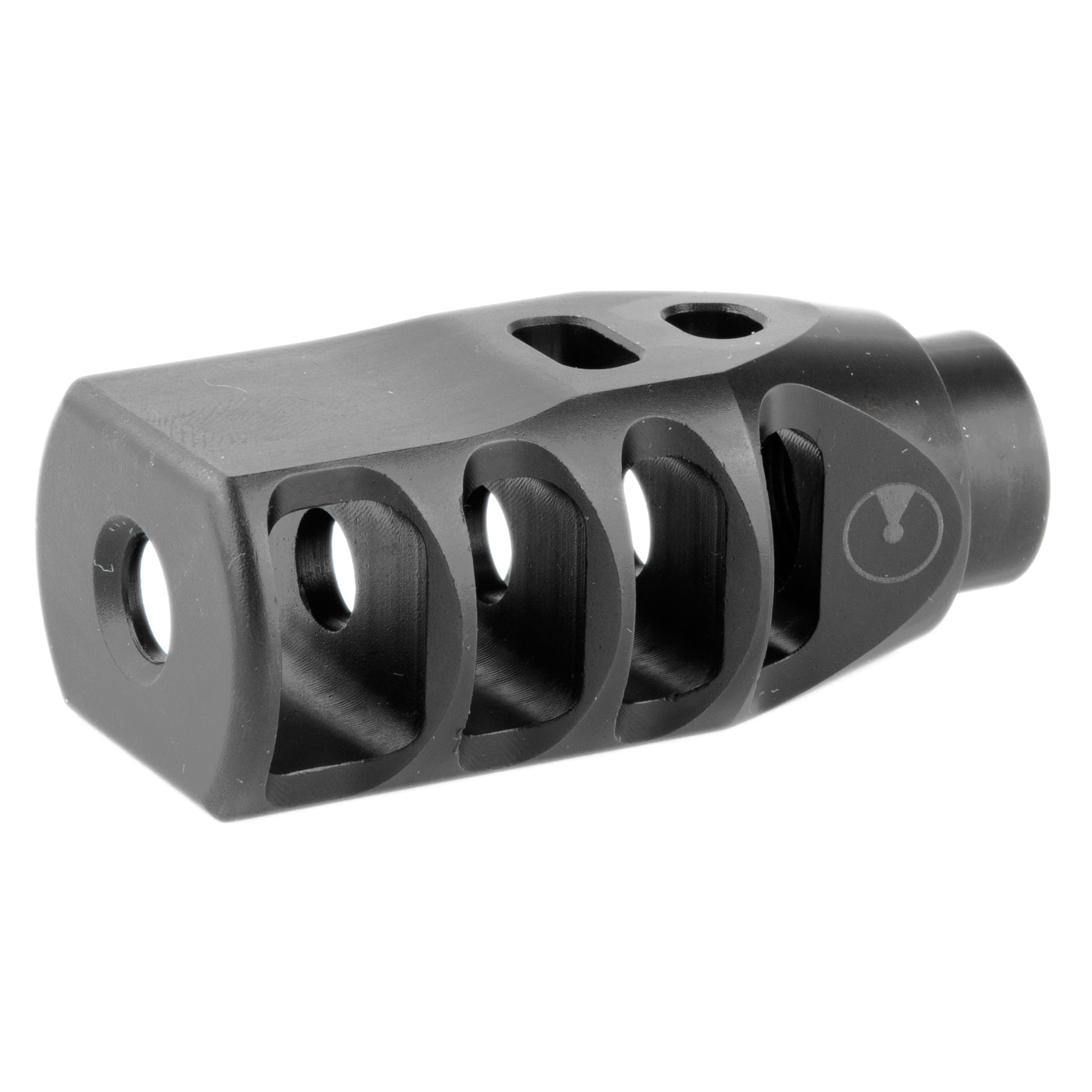

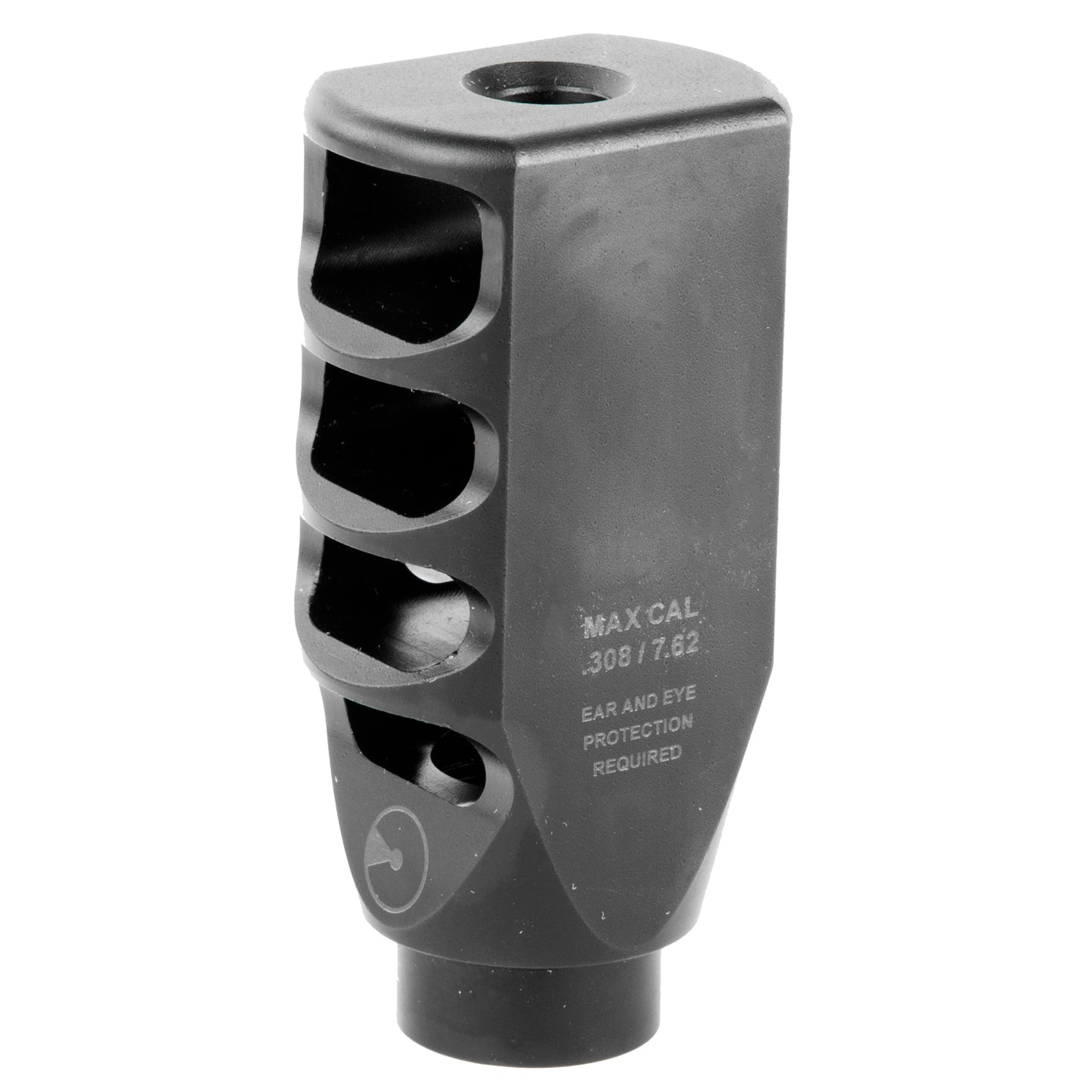

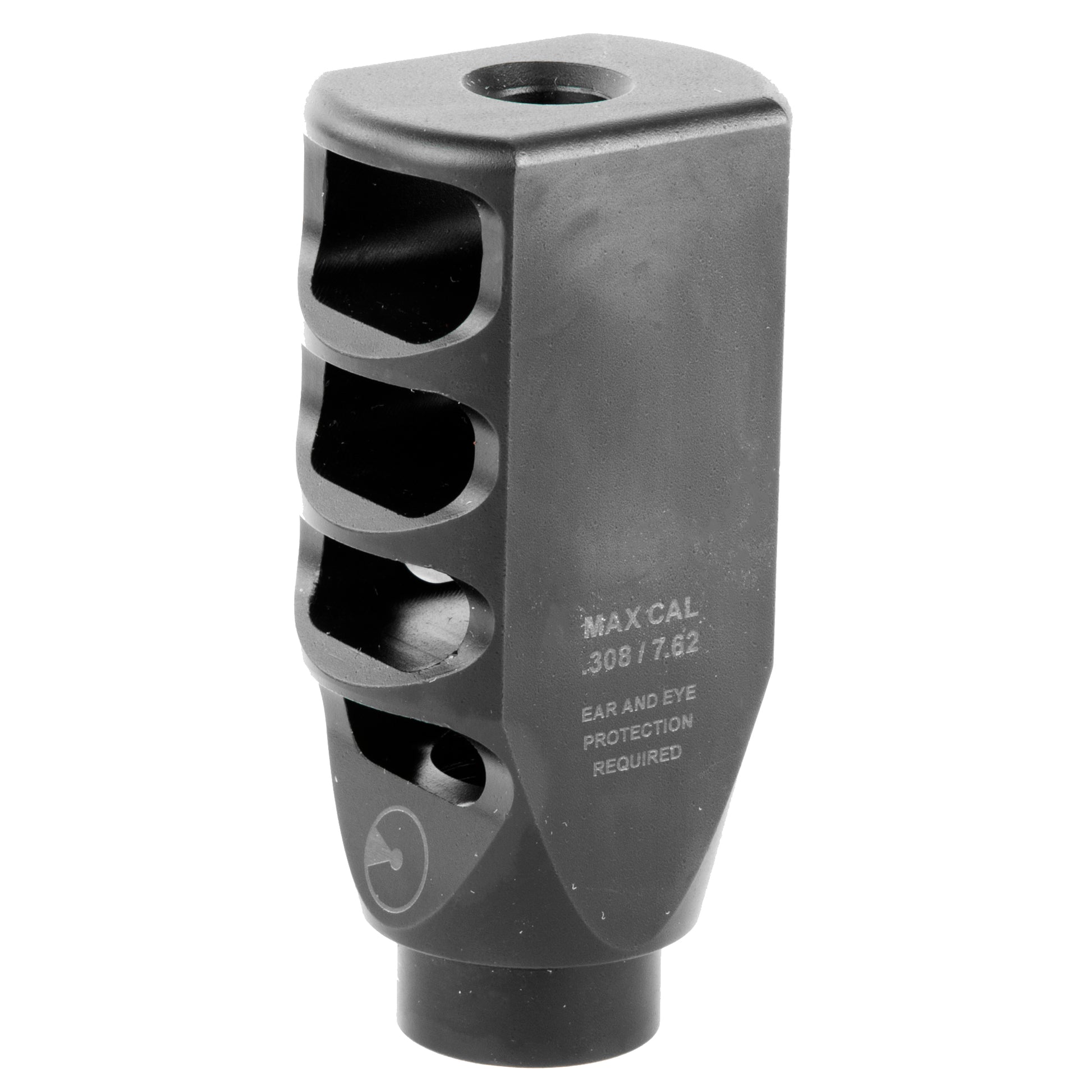

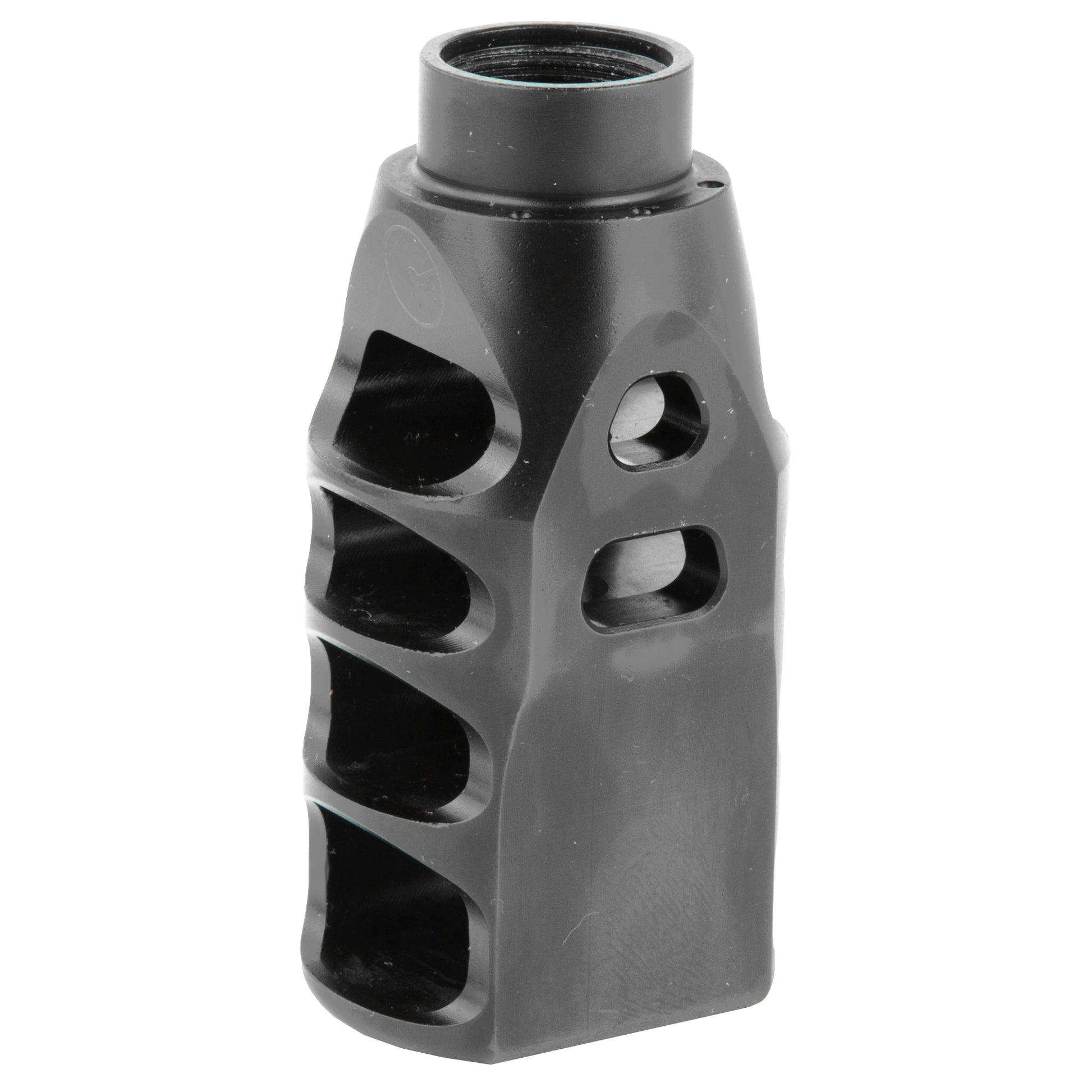

Ultradyne USA Pegasus 5/8x24 Muzzle Brake – .30 Caliber Rifles

The Ultradyne USA Pegasus muzzle brake redirects propellant gases to dramatically reduce felt recoil and muzzle rise on .30 caliber rifles. Its asymmetrical port design vents gases upward and to the sides, keeping the muzzle flat during rapid strings while minimizing ground disturbance for prone shooters. This brake is particularly effective on magnum chamberings where recoil management directly impacts follow-up shot speed and accuracy.

The Pegasus features a timing nut system that allows precise indexing without shims or crush washers. Machined from 416 stainless steel with a salt bath nitride finish for corrosion resistance and reduced maintenance. The 5/8x24 thread pitch is standard for most .30 caliber bolt-action and semi-automatic rifles. Installation requires a torque wrench and armorer's wrench or appropriate spanner tool for the timing nut.

• Type: Muzzle Brake
• Caliber: .30 Caliber (.308/7.62mm)
• Thread Pitch: 5/8x24 TPI
• Material: 416 Stainless Steel
• Finish: Salt Bath Nitride
• Compatible Firearms: .30 caliber rifles with 5/8x24 threaded barrels (AR-10, .308 Win, 6.5 Creedmoor, .300 Win Mag, etc.)
